U-Channel Posts
U-Channel Sign Posts are manufactured from high quality, high tensile steel and finished with baked enamel paint or powder coating; also available in hot-dipped galvanized finish exceeding ASTM specifications. One person can install or replace a complete post and sign assembly in minutes. Delineator posts available in 1.33 #/ft or 1.12 #/ft in multiple lengths. FHWA accepted and NCHRP 350 approved.
| Green Part Number | Galvanized Part Number | Length x lbs/ft |
|---|---|---|
| PU6X2GR | PU6X2GA | 6' x 2 #/ft |
| PU7X2GR | PU7X2GA | 7' x 2 #/ft |
| PU8X2GR | PU8X2GA | 8' x 2 #/ft |
| PU9X2GR | PU9X2GA | 9' x 2 #/ft |
| PU10X2GR | PU10X2GA | 10' x 2 #/ft |
| PU10X3GR | PU10X3GA | 10' x 3 #/ft |
| PU11X2GR | PU11X2GA | 11' x 2 #/ft |
| PU11X3GR | PU11X3GA | 11' x 3 #/ft |
| PU12X2GR | PU12X2GA | 12' x 2 #/ft |
| PU12X3GR | PU12X3GA | 12' x 3 #/ft |

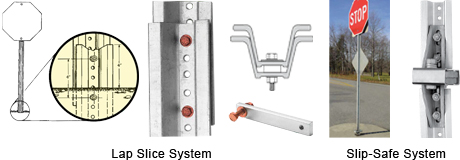

U-Channel Breakaway Systems
Lap Splice™
The Lap SpliceŠ is a ground-mounted, bolted base breakaway system for U-Channel posts.
- Base is easily driven in even the hardest soils from ground level with manual or power tools
- Nest and bolt top post to bottom post in minutes
- System utilizes two special bolts and a bar spacer
- System forms a union as strong as the posts themselves
- Installation crews spend less time by the side of the road
Slip-Safe™
The Slip-SafeŠ is a durable, safe and reusable breakaway system that's an ideal solution for small sign supports in high-impact areas.
- Utilizes a short u-channel base or ground post so it can easily and quickly be driven into the ground in minutes
- Specially designed castings are bolted to top and bottom posts
- System bolted together with U-washers and a keeper plate in between top and bottom assemblies
Slip-Safe™ Supreme
The Slip-SafeŠ Supreme is a 360° breakaway system for mid-size sign supports.
For additional information on U-Channel Posts please contact the office and our customer service representatives will gladly provide more information on your options - Email Us or call (800) 296-6050.
