Work Zone Signs

---

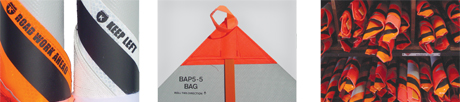

Korman Signs has been developing and improving upon roll-up signs for more than 35 years. Roll-up signs are manufactured in our production facility here in the USA from your choice of three flexible materials. Each sign comes with a set of ribs that run from corner to corner and 4 heavy duty cloth pockets to hold the ribs. The resulting product is a lightweight alternative to rigid signs and a very popular, effective product when used with portable stands in temporary work zones. KSI roll-up signs can duplicate any rigid sign and are available in many shapes, sizes, and colors.

For a list of work zone sign legends check out Work Zone Sign Legends or visit our Online Store to purchase Diamond Grade Roll-Up Signs

---

---

Roll-Up Signs Materials



3M™ Diamond Grade™ Roll-Up Signs

3M™ Diamond Grade™ Roll Up Sign Sheeting Series RS20 is a highly visible prismatic lens reflective sheeting designed for the production of roll up signs that are typically used in construction work zones. When assembled with cross braces it has the same appearance as a rigid sign. It is designed to accept the sewing or riveting of corner pockets. RS20 series has such wide angular performance it functions at angles that no other sheeting can provide. RS20 series is the superior choice in maximizing portable work zone safety. Available in White (RS20) or Orange (RS24).

• Unsurpassed reflectivity & angularity values
• Long-lasting visible fluorescent orange color
• Portable
• Surface cleans up easily and is non-absorbent of most chemicals
• 3 year warranty
• Closely resembles a rigid Diamond Grade sign due to its smooth, low-wrinkle surface
• Product of 70 years of ongoing 3M innovation and engineering

Incident Management Pink

When viewed from a distance, Fluorescent Pink Reflective Vinyl is up to 40% more noticeable by motorists and is highly visible under varying conditions. Incident Management Pink signage is also immediately distinguishable from standard work zone safety signage. Flexible, lightweight roll-up material makes for quick set-up and take-down, plus easy storage on emergency response vehicles. Incident Management Pink is recommended by MUTCD 6-I.

---

Corner Pockets

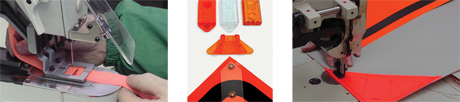

State of the art, computerized sewing equipment at KSI has brought with it innovations in pocket design. KSI corner pockets are made of heavy duty, 4-ply, minimum 15 oz. material. Each of the 4 pockets per sign are bar-tacked for added strength and double-stitched directly to the back of the sign for durability. Cloth corner pockets allow signs to be rolled tightly for stacking and storing, for greater convenience and more efficient use of space.

KSI 4-ply triangular shaped pockets spread corner stress over a larger area to help prevent failure. A strip of velcro keeps signs in a tightly rolled-up state, and its available for anti-kiting. KSI provides the option of riveted plastic pockets, available upon request.

---

Cross Braces

• All signs come with 3/8" thick vertical ribs to minimize sign deflection when used with ultra compact stands.
• High-quality UV resistant polyester/glass fiber "pultrusion" ribs are joined at the center with a special heavy-duty, low profile rivet to minimize scuffing and wear; thus lasting the lifetime of the sign they support.
• Rib ends are radiused and chamfered for smooth assembly and low abrasion.

Sign legends are printed on outer edge for ready identification when sign has been rolled for storage and transport. Lot numbers are printed on the back of each sign for quality control. KSI maintains a large inventory of roll-ups signs, screen printed with a variety of legends.

---

For additional information on Work Zone Signs check out the Online Store or contact the office and our customer service representatives will gladly provide more information on your options - Email Us or call (800) 296-6050.
