Anchors



Square Post Anchors

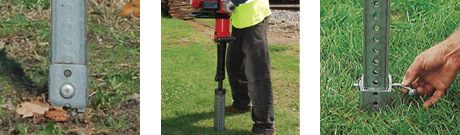

Anchors are designed to be driven into the soil leaving about 1" - 2" above the ground. Once the anchor is in the ground, insert the signpost into the anchor and secure with a corner bolt and nut. If the sign post is ever damaged the original anchor can be reused.

For anchor installation choose from a manual or powered device and the corresponding drive cap. When using a power driver a shank and appropriate drive cap is required.

For more information on drivers and drive caps see Post Drivers and Drive Caps.


Anchors

Part Number Size Wall Thickness Anchor Post Size
PSQP30X2.25GA12P 30" x 2 1/4" x 2 1/4" 12 GA 8 Hole Galvanized Anchor 2"
PSQP36X2.25GA12P 36" x 2 1/4" x 2 1/4" 12 GA 8 Hole Galvanized Anchor 2"

Part Number Size Wall Thickness Anchor Post Size
PSTS30X2.25GA12P 30" x 2 1/4" x 2 1/4" 12 GA Galvanized Square Anchor 2"
PSTS36X2GA12P 36" x 2" x 2" 12 GA Galvanized Square Anchor 1.75"
PSTS36X2.25GA12P 36" x 2 1/4" x 2 1/4" 12 GA Galvanized Square Anchor 2"

Part Number Size Wall Thickness Anchor Post Size
PSTSQDA250-36G 36" x 3" x 3" 7 GA Heavy Duty Quick Drive Anchor 2.5"

Part Number Size Wall Thickness Anchor Post Size
PSTSHDA200-30G 30" x 2 1/2" x 2 1/2" 7 GA Heavy Duty Tubular Anchor 2"
PSTSHDA200-36G 36" x 2 1/2" x 2 1/2" 7 GA Heavy Duty Tubular Anchor 2"
PSTSHDA250-36G 36" x 3" x 3" 7 GA Heavy Duty Tubular Anchor 2.5"
PSTSHDA250-42G 42" x 3" x 3" 7 GA Heavy Duty Tubular Anchor 2.5"
PSTSHDA250-48G 48" x 3" x 3" 7 GA Heavy Duty Tubular Anchor 2.5"

Part Number Size Wall Thickness Anchor Post Size
PSTSTWA250-36G 36" x 3" x 3" 7 GA Heavy Duty Winged Anchor 2.5"
PSTSTWA250-42G 42" x 3" x 3" 7 GA Heavy Duty Winged Anchor 2.5"
PSTSTWA250-48G 48" x 3" x 3" 7 GA Heavy Duty Winged Anchor 2.5"



8 Hole Anchor Galvanized Anchor Quick Drive Anchor

8 Hole Anchor

Galvanized Square Anchor

Heavy Duty Quick Drive Anchor


Heavy Duty Tubular Anchor Heavy Duty Winged Anchor

Heavy Duty Tubular Anchor

Heavy Duty Winged Anchor







Check out Round Posts for more information on the Round Post Socket & Wedge System.

Check out U-Channel Posts for more information on U-Channel Breakaway Systems.



For additional information on Anchors please contact the office and our customer service representatives will gladly provide more information on your options - Email Us or call (800) 296-6050.
