Hardware & Accessories
Drive Rivets & Washers
HFDR3878EAS
3/8" Aluminum Shell/Steel Pin Drive Rivet
HFDR3878-06-W
3/8" Aluminum Shell/Steel Pin Drive Rivet with Nylon Washer
Nylon Washers
Multiple sizes, varying in diameter and thickness. See chart below.
Nylon Washers
| Part Number | Outer Diameter | Inner Diameter | Thickness |
|---|---|---|---|
| HF73116N | 7/8" | 3/8" | 1/16" |
| HF731N | 7/8" | 3/8" | 1/8" |
| HF13818N | 1" | 3/8" | 1/8" |
| HF87161 | 1" | 7/16" | 1/8" |
| HF112528116 | 1 1/4" | .391" | 1/16" |
| HF11252818 | 1 1/4" | .391" | 1/8" |

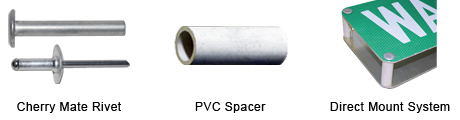

Direct Mount Hardware
| Part Number | Description |
|---|---|
| HFCHEBSLM-8BP-26 | 1/4" Aluminum Cherry Mate Rivet #26 use with 1 1/2" Telespar |
| HFCHEBSLM-8BP-30 | 1/4" Aluminum Cherry Mate Rivet #30 use with 1 3/4" Telespar |
| HFCHEBSLM-8BP-34 | 1/4" Aluminum Cherry Mate Rivet #34 use with 2" Telespar |
| HFPVCSP175 | 1 3/4" x 1/2" PVC Spacer / fits #34 Cherry Mate Rivet |

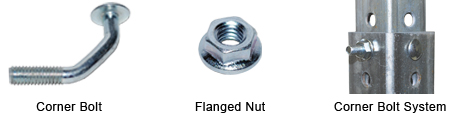

Corner Bolts
| Part Number | Description |
|---|---|
| HFCB516SZ | 5/16" Small Corner Bolt fits 1 3/4" - 2" square Telespar anchor |
| HFCB516ME | 5/16" Medium Corner Bolt fits 2 1/4" - 2 1/2" square Telespar anchor |
| HFCB516LE | 5/16" Large Corner Bolt fits 2 3/4" - 3" square Telespar anchor |
| HFFN516E | 5/16" Flanged Nut |
| HFCBFN516ME | 5/16" Medium Corner Bolt with Flanged Nut, kit for securing the post to the anchor |
Vandal Resistant Hardware
| Part Number | Description |
|---|---|
| HF-5CSS05SS | 5/16" Stainless Steel Standard Set Screw |
| HFG25CSS05Z | 5/16" Zinc Plated Standard Set Screw |
| HFG25CVPSS05Z | 5/16" Vandal Resistant Set Screw with center pin |
| HFG25CBHVPSS10Z | 5/16" x 1" Vandal Resistant Bolt |
| HA316VP | 3/16" T-Handle Wrench for installation of standard and vandal resistant hardware |
| HA532VP | 5/32" T-Handle Wrench for installation of standard and vandal resistant hardware |
Post Caps
HCC250
Dome Rain Cap for 2" round post
HCCAG509
Galvanized Cap for 4" x 4" square post, plated steel
Available in 3" x 3"
HCC22
Pyramid Rain Cap for 2" x 2" square post
Available in powder coated colors
Telespar Connector Brackets
PATL020EG
90° Fitting for Square Telespar Post
PATL019EG
Offset 45° Fitting for Square Telespar Post
PATL016EG
L Fitting for Square Telespar Post
PATL015EG
T Fitting for Square Telespar Post
PATL018EG
Straight Fitting for Square Telespar Post
PASS10-250E
Bolt-On Soil Stabilizer - keeps larger sign installations from leaning in soft soil, fits 1 3/4" - 2 1/2" Telespar anchor
PATL130EG
Guard Rail Clamp - secures 1 3/4" - 2" square Telespar post directly to guardrail
Guardrail Clamp
For additional information on Hardware & Accessories please contact the office and our customer service representatives will gladly provide more information on your options - Email Us or call (800) 296-6050.
