Flexible Posts
Surface Mount Systems
The Safe-Hit Surface Mount System includes 2 1/4" diameter posts constructed of durable linear low density, co-extruded polyethylene with UV inhibitors. They are designed with an innertube to help withstand vehicular impacts and are available in heights ranging from 18" - 54".
The surface mount posts can be installed on asphalt or concrete using epoxy kits, butyl pads or mechanical anchors. The surface mount pin lock base comes standard with all flexible surface mount posts.
Type 2 Guide posts
Round post, flattened on top with black oval cap, one 3" x 9" reflective strip and surface mount pin lock base.
| Size | Sheeting | Part Number |
|---|---|---|
| 36" | Diamond Grade | PRSH236SMA |
| 42" | Diamond Grade | PRSH242SMA |
| 48" | Diamond Grade | PRSH248SMA |
Type 3 Channelizer
Round post with recessed cap, one 6" reflective wrap and surface mount pin lock base.
| Size | Sheeting | Part Number |
|---|---|---|
| 36" | Diamond Grade | PRSH336SMA |
| 42" | Diamond Grade | PRSH342SMA |
| 48" | Diamond Grade | PRSH348SMA |
Specify post color and reflective sheeting color when ordering. All posts available with or without reflective wrap; other posts sizes and reflective wrap options available upon request.
Posts available in standard colors - white, yellow or orange, custom colors available upon request. Standard reflective sheeting available in white, yellow or orange 3M™ High Intensity, High Intensity Prismatic or Diamond Grade Cubed (DG³).
Surface Mount Bases
PRSHSMT-1---BL
Surface Mount Twist Lock Base - Used when posts must be installed, removed and re-installed periodically
PRSHSLT-1---BL
Sub-Level Twist Lock Base - Used when it is desirable to have the base level with the surface
PRSHSST-1---BL
Sub-Surface Twist Lock Base - Used when a low profile is desired due to vehicular or pedestrian traffic
PRSHSMA-1---BL
Surface Mount Pin Lock Base - Ideal for permanent installations, comes standard with posts
PRSHPSB-1---BL
Portable Base - No anchor or adhesive required. Ideal for temporary applications
PRSHEPX-13---K1
2 part epoxy
(1 unit per post)
PRSH-22
8" x 8" Butyl Pad
Soil Anchor Systems
The Safe-Hit Soil Anchor System's two-part driveable delineators feature a 2 1/4" post diameter and are used for marking highways, entrances, exits, curves, driveways, fire lanes and parking lots. Driveable posts are available in heights ranging from 18" - 54" and come standard with an 18" closed end, drivable soil anchor. In heavy soil a 14" or 18" anchor is recommended. In sandy or loose soil a 24" anchor should be utilized. The 8" anchor is used for concrete applications.
Type 2 Guide posts
Round post, flattened on top with black oval cap, one 3" x 9" reflective strip and surface mount pin lock base.
| Size | Sheeting | Part Number |
|---|---|---|
| 36" | Diamond Grade | PRSH236GP3 |
| 42" | Diamond Grade | PRSH242GP3 |
| 48" | Diamond Grade | PRSH248GP3 |
Type 3 Channelizer
Round post with recessed cap, one 6" reflective wrap and surface mount pin lock base.
| Size | Sheeting | Part Number |
|---|---|---|
| 36" | Diamond Grade | PRSH336GP3 |
| 42" | Diamond Grade | PRSH342GP3 |
| 48" | Diamond Grade | PRSH348GP3 |
Specify post color and reflective sheeting color when ordering. All posts available with or without reflective wrap; other posts sizes and reflective wrap options available upon request.
Posts available in standard colors - white, yellow or orange, custom colors available upon request. Standard reflective sheeting available in white, yellow or orange 3M™ High Intensity, High Intensity Prismatic or Diamond Grade Cubed (DG³).

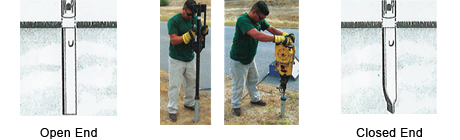

Soil Anchors
| Size | Anchor Type | Part Number |
|---|---|---|
| 8" | Open End Concrete Anchor | PRSHA1--08OE-GL |
| 14" | Closed End Anchor | PRSHA5--14C-GL |
| 18" | CLosed End Anchor | PRSHA3--18C-GL |
For additional information on Flexible Posts please contact the office and our customer service representatives will gladly provide more information on your options - Email Us or call (800) 296-6050.
